| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | UL ,RoHS ,REACH |
| Model Number: | JVT1146 |
| Minimum Order Quantity: | 2000PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Tape&Reel |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000pcs per month |
| Category: | PCB Board Connector | Pitch: | 1.25mm |
|---|---|---|---|
| Poles: | 3-20 | Type: | DIP |
| Highlight: | pcb socket connector,pcb header connectors |
||

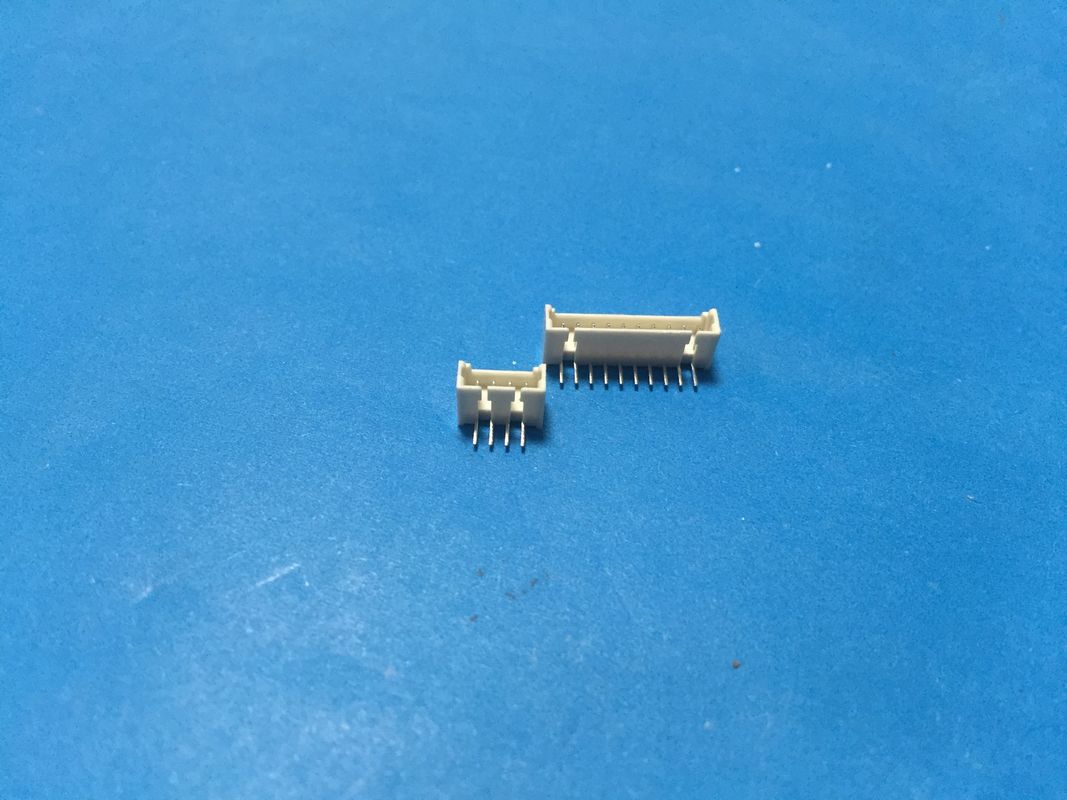

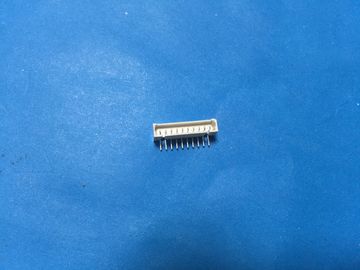

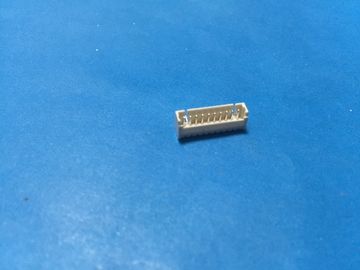

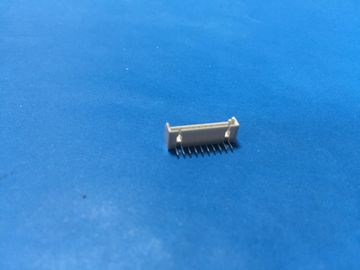

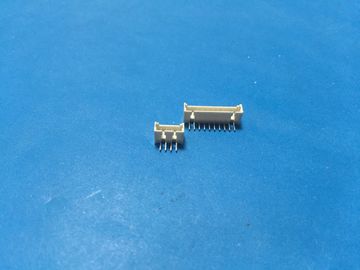

DIP PCB Board Connector , Right Angle Wire To Board Crimp Style Connectors
JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items.
Specification :
| Part no | JVT1120WNO |
| Poles | 3-20 |
| Pitch | 1.25mm |
| Finish | Tin-plated |
| Current rating | 3A AC/ DC |
| Voltage rating | 250V AC,DC |
| Insulation resistance | 1000MΩmin |
| Temperature range | -25°C~+85C° |
| Color | White |
| Package | 1000pcs/bag |
Payment Details :
Payment Terms :T/T or Western Union
Minimum Order :2000 Pieces
Samples :free
Competitive Advantages :
♦ Connectors manufacturer with over 15 years experience
♦ Complete Product range
♦ Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS
♦ Close to Shenzhen Port
♦ Punctual & Short lead time
♦ Good quality & Competitive Price
