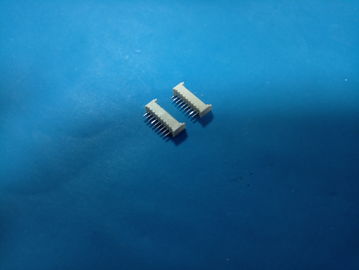

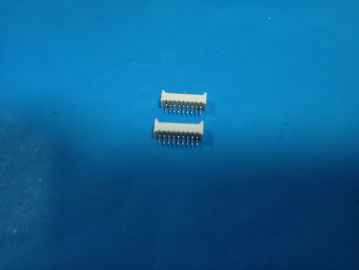

Vertical DIP Tin Plating Molex Pcb Connectors 1.25mm Pitch Nylon 66 UL94V-0

    • Vertical DIP Tin Plating Molex Pcb Connectors 1.25mm Pitch Nylon 66 UL94V-0
    • Vertical DIP Tin Plating Molex Pcb Connectors 1.25mm Pitch Nylon 66 UL94V-0
  • Vertical DIP Tin Plating Molex Pcb Connectors 1.25mm Pitch Nylon 66 UL94V-0

    Product Details:

    Place of Origin: CHINA
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT1147

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Category: PCB Board Wafer Application: PCB Board Connector
    Type: DIP Number Of PIns: 9



    Vertical DIP Tin Plating Molex Pcb Connectors 1.25mm Pitch Nylon 66 UL94V-0





    Material Specification:

    Terminal: Phosphor Bronze or Brass ,Tin plated

    Housing: PA66,UL94V-0

    Wafer: Nylon 66 UL94V-0

    PIN: Brass ,Tin plated





    Standard Specification:



    Pitch 1.25mm
    Contacts 2-16
    Applicable wire AWG#18-22
    Voltage rating 250V AC/DC
    Current rating 5A AC/DC
    Withstand voltage 1500V AC/minute
    Working temperature -25°C to +85°C
    Insulation resistance 800MΩ Min
    Contact resistance 20MΩ Max





    Our advantage



    Favorable unit price



    Strict quality control



    Shortest lead time



    Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)



    Accelerated equipments:10 automated injection molding
    20 automated pin - setting
    6 high precision stamping machines




    JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items .
