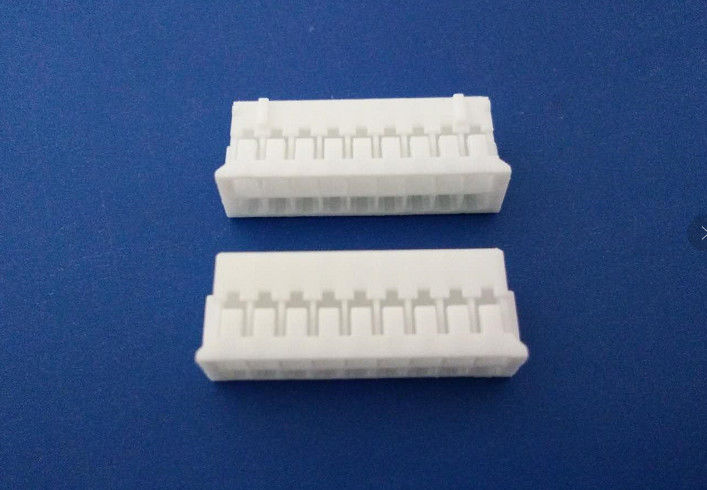

PHD 2.0mm Wire To Board Crimp Dual Row 18 Pin Housing In White Color

PHD 2.0mm Wire To Board Crimp Dual Row 18 Pin Housing In White Color

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001 UL SGS
Model Number: JVT2007HN0-2*9L

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiation
Delivery Time: 7~10 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Material: PA66 UL94v-0 Color: White
Poles: Dual Row 18 Pin Pitch: 2.0mm

PHD 2.0mm Wire To Board Crimp Dual Row 18 Pin Housing In White Color


JVT offer a complete range of board to board and wire to board connectors including: pin header, mini jumpers, female header, PCB Multipole and housing a wide range of applications including: industrial, Medical and automotive.

All are offered with small moq's ,the majority being stocked items.





Specification​ :


Temperature range -25°C ~ +85°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩmin
Poles 2*9pin
Voltage Rating 250V AC/DC
Current Rating 3A AC/DC
Withstanding voltage 800V AC/minute


Payment Details :



Payment Terms:T/T



Minimum Order:1000 Pieces





Service :



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
