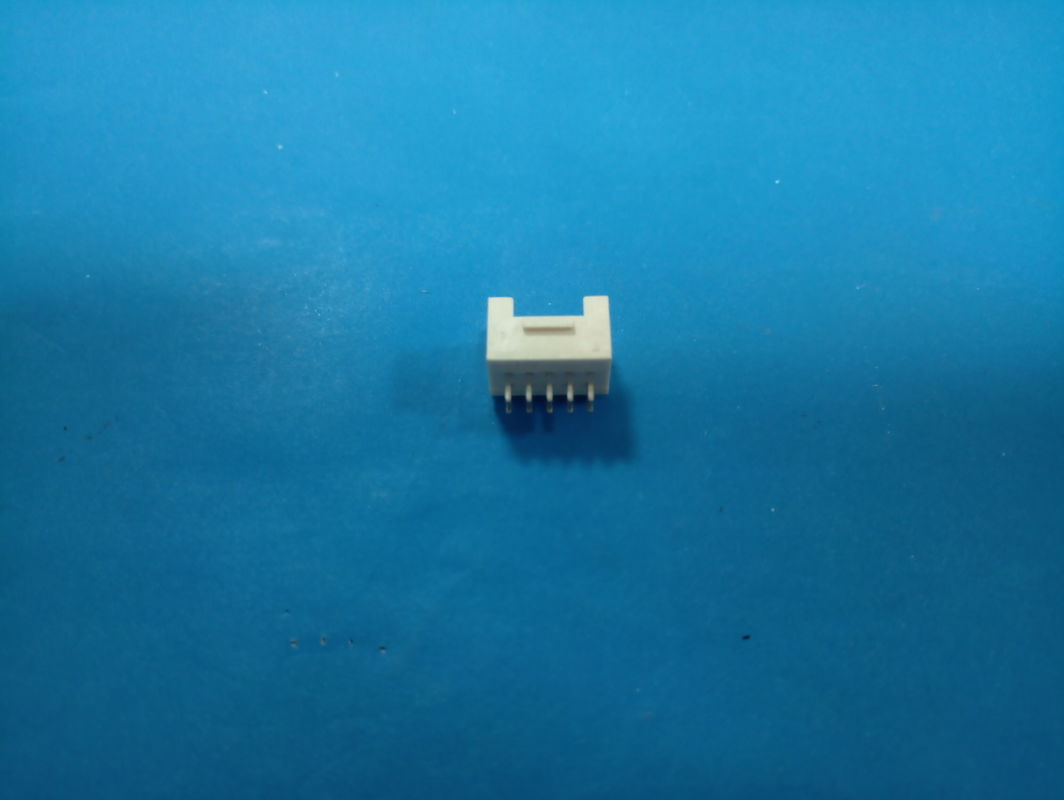

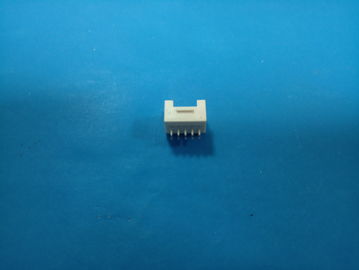

Double Row 2*2-2*16 Pin Circuit Board Wire Connectors Vertical PA66 Material

    • Double Row 2*2-2*16 Pin Circuit Board Wire Connectors Vertical PA66 Material
    • Double Row 2*2-2*16 Pin Circuit Board Wire Connectors Vertical PA66 Material
  • Double Row 2*2-2*16 Pin Circuit Board Wire Connectors Vertical PA66 Material

    Product Details:

    Place of Origin: CHINA
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2041

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Material:: Nylon66 UL94V-0 Pitch: 2.0mm
    Poles: 2-16 Angle: Vertical
    Type:: DIP Category:: PCB Board Wafer

    Double Row 2*2-2*16 Pin Circuit Board Wire Connectors Vertical PA66 Material



    Standard Specification:



    Pitch 2.0mm
    Pol4es 2*2-2*16
    Applicable wire AWG#18-22
    Voltage rating 250V AC/DC
    Current rating 5A AC/DC
    Withstand voltage 800V AC/minute
    Working temperature -25°C to +85°C
    Insulation resistance 1000MΩ Min
    Contact resistance 20MΩ Max





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America





    Our advantage





    Favorable unit price



    Strict quality control



    Shortest lead time



    Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)



    Accelerated equipments:10 automated injection molding
    20 automated pin - setting
    6 high precision stamping machines
