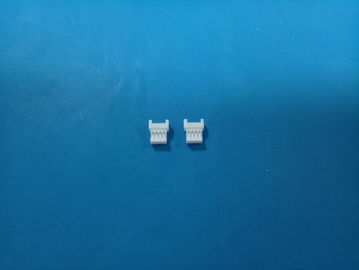

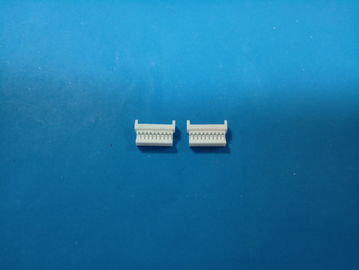

1.25mm Pitch 2-15 Poles Female Header Connectors 250V AC / DC Rating Voltage

1.25mm Pitch 2-15 Poles Female Header Connectors 250V AC / DC Rating Voltage

    • 1.25mm Pitch 2-15 Poles Female Header Connectors 250V AC / DC Rating Voltage
    • 1.25mm Pitch 2-15 Poles Female Header Connectors 250V AC / DC Rating Voltage
    • 1.25mm Pitch 2-15 Poles Female Header Connectors 250V AC / DC Rating Voltage
  • 1.25mm Pitch 2-15 Poles Female Header Connectors 250V AC / DC Rating Voltage

    Product Details:

    Place of Origin: CHINA
    Brand Name: JVT
    Certification: UL,RoHS,REACH
    Model Number: JVT1146

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 5-7days
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Pitch: 1.25mm Rating Voltage: 250V AC/DC
    Rating Current: 1A AC/DC Contact Resistance: 20MΩ Max.
    Insulation Resistance: 500MΩ Min Operating Temperature: -40°C To +85°C



    1.25mm Pitch 2-15 Poles Female Header Connectors 250V AC / DC Rating Voltage





    1.25mm Pitch Wire to Wire Connector Suppliers ,2-15 Poles Female Header Connectors



    JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items .





    Specification Standardized:



    Pitch 1.25mm
    No.of contact 2
    Applicable wire AWG#22-28
    Rating Voltage 250V AC/DC
    Rating Current 1A AC/DC
    Voltage Withstand 1500V AC/minute
    Operating temperature -40°C to +85°C
    Insulation resistance 500MΩ Min
    Contact resistance

    20MΩ Max.





    Material Specification :



    Terminal: Phosphor Bronze ,Tin plated



    Housing: PA66,UL94V-2





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:



    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:





    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America





    Equipment and Service:





    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
