Place of Origin: | CHINA |
Brand Name: | JVT |
Certification: | UL,RoHS,REACH |
Model Number: | JVT1146 |
Minimum Order Quantity: | 1000 |
---|---|
Price: | negotiation |
Packaging Details: | Tape&Reel |
Delivery Time: | 5-7days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 500000pcs per day |
Pitch: | 1.25mm | Rating Voltage: | 250V AC/DC |
---|---|---|---|
Rating Current: | 1A AC/DC | Contact Resistance: | 20MΩ Max. |
Insulation Resistance: | 500MΩ Min | Operating Temperature: | -40°C To +85°C |

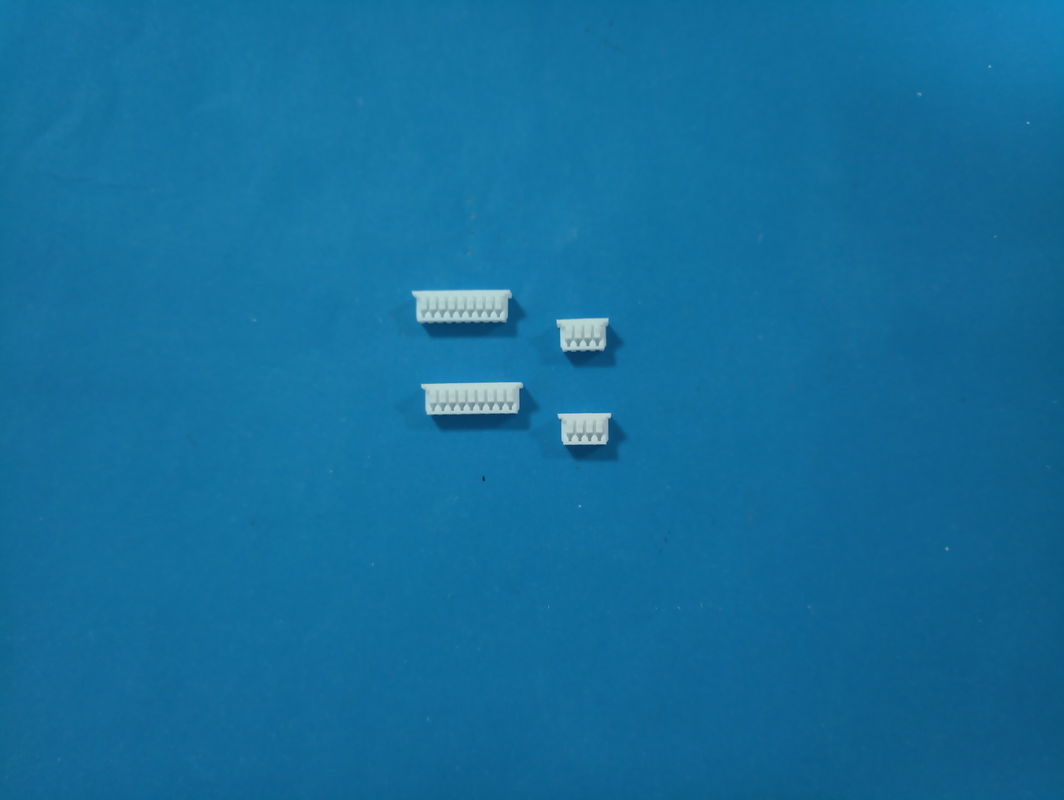

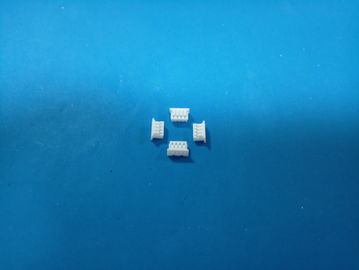

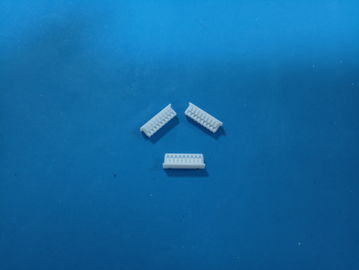

2-15 Poles Male Female 10 Pin Connector Wire To Wire 20MΩ Max Contact Resistance
1.25mm Pitch Wire to Wire Connector types ,2-15 Poles Male Female Wire Connectors
JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
Specification Standardized:
Pitch | 1.25mm |
No.of contact | 2 |
Applicable wire | AWG#22-28 |
Rating Voltage | 250V AC/DC |
Rating Current | 1A AC/DC |
Voltage Withstand | 1500V AC/minute |
Operating temperature | -40°C to +85°C |
Insulation resistance | 500MΩ Min |
Contact resistance |
20MΩ Max. |
Material Specification :
Terminal: Phosphor Bronze ,Tin plated
Housing: PA66,UL94V-2
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
Main Export Markets:
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
