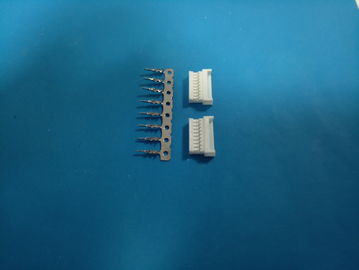

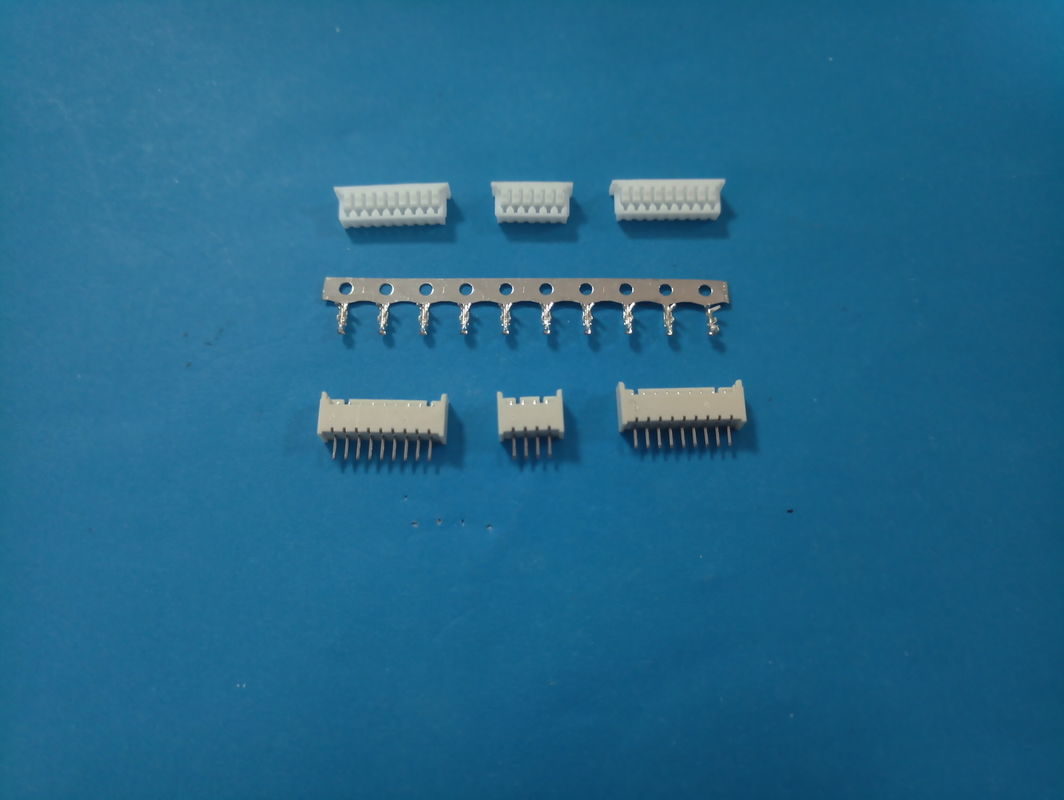

1.25mm Pitch Wire To Board Connector 2 Pin - 15 Pin With Nylon 66 UL94V - 0

    • 1.25mm Pitch Wire To Board Connector 2 Pin - 15 Pin With Nylon 66 UL94V - 0
    • 1.25mm Pitch Wire To Board Connector 2 Pin - 15 Pin With Nylon 66 UL94V - 0
    • 1.25mm Pitch Wire To Board Connector 2 Pin - 15 Pin With Nylon 66 UL94V - 0
  • 1.25mm Pitch Wire To Board Connector 2 Pin - 15 Pin With Nylon 66 UL94V - 0

    Product Details:

    Place of Origin: CHINA
    Brand Name: JVT
    Certification: UL,RoHS,REACH
    Model Number: JVT1146

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 5-7days
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Pitch: 1.25mm Poles: 2-15
    Rating Current: 1A AC/DC Rating Voltage: 250V AC/DC
    Withstand Voltage: 1500V AC/minute Operating Temperature: -40°C To +85°C



    1.25mm Pitch Wire To Board Connector 2 Pin - 15 Pin With Nylon 66 UL94V - 0



    Material Specification:



    Terminal: Phosphor Bronze ,Tin plated



    Housing: PA66 UL94V-0



    Wafer: Nylon 66 UL94V-0



    PIN: Brass ,Tin plated



    Specification Standardized:



    Pitch 1.25mm
    Poles 2-15
    Rating Voltage 250V AC/DC
    Rating Current 1A AC/DC
    Withstand voltage 1500V AC/minute
    Operating temperature -40°C to +85°C
    Insulation resistance 1000MΩ Min
    Contact resistance 20MΩ Max.



    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces


    Main Export Markets:



    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
