Place of Origin: | China |
Brand Name: | JVT |
Certification: | UL ,RoHS ,REACH |
Model Number: | JVT2041 |
Minimum Order Quantity: | 1000 |
---|---|
Price: | Negotiation |
Packaging Details: | Tape&Reel |
Delivery Time: | 5-7working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 500000pcs per day |
Poles: | 2*2-2*20 | Pitch: | 2.0mm |
---|---|---|---|
Material: | Nylon 66 UL 94V-0 | Finish: | Tin-plated |
Current Rating: | 5A AC/ DC | Voltage: | 250V AC,DC |

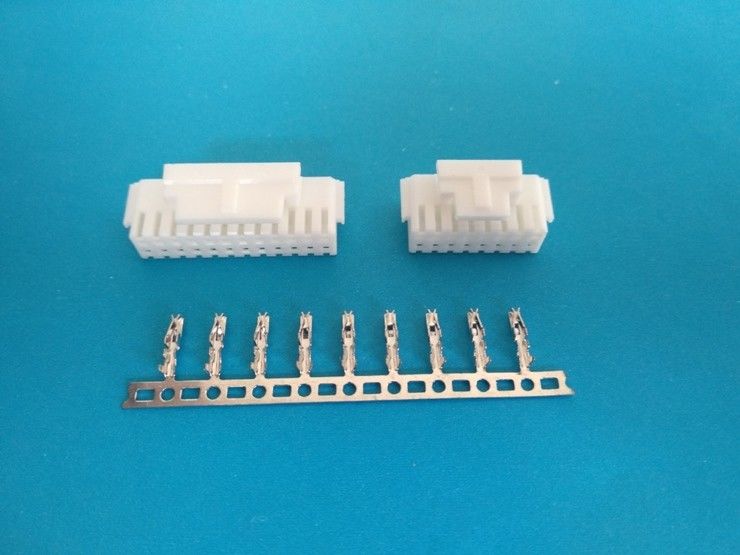

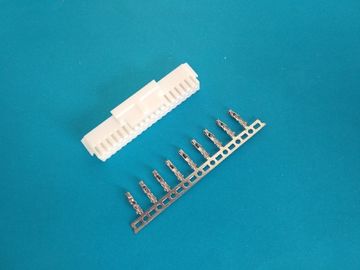

2.0mm Pitch,4-40Pin,Double PCB Board To Board Connectors,Dip Type Tin-plated,AWG#22-28
JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items.
Specification :
Material | Nylon 66UL94V-0 |
Voltage Rating | 250V AC,DC |
Current Rating | 5A,AC,DC |
Withstand Voltage | 1000V AC/minute |
Contact Resistance | 10mΩmax |
Insulation Resistance | 1000mΩmin |
Finish | Tin-plated |
Package | 1000pcs/bag |
Samples | free |

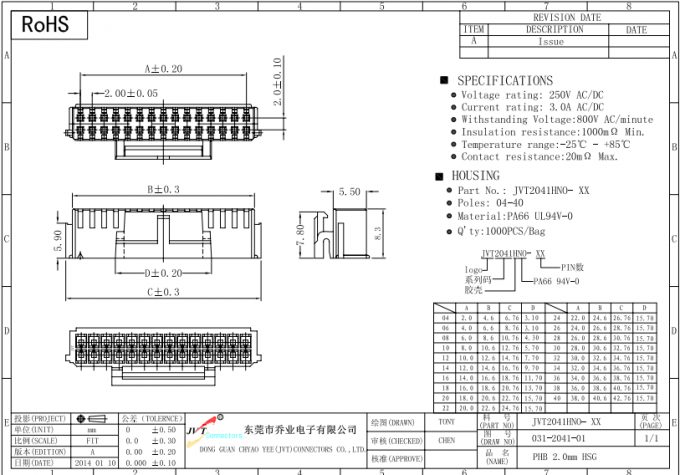

Drawing :
Payment Details :
Payment Terms :T/T or Western Union
Minimum Order :1000 Pieces
Samples :free
Equipments:
JVT company strengths :
♦ Quality Approvals
♦ Prompt Delivery
♦ International Approvals
♦ Guarantee/Warranty
♦ Competitive Price
♦ Friendly Service
♦ Experienced Staff
♦ Asia
♦ Australia
♦ Central/South America
♦ Mid East/Africa/North America
