| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | UL ,RoHS ,REACH |
| Model Number: | JVT2005 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Tape&Reel |
| Delivery Time: | 5~7working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000pcs per day |
| Category: | Wire To Board Connector | Pitch: | 2.0mm |
|---|---|---|---|
| Poles: | 2-15 | Color: | White |
| Type: | Dip | Finish: | Tin-plated |
| Current Rating: | 2A AC/ DC | Voltage Rating: | 250V AC,DC |
| Withstand Voltage: | -25°C ~ +85C° | Material: | PA66 UL 94V-0 |

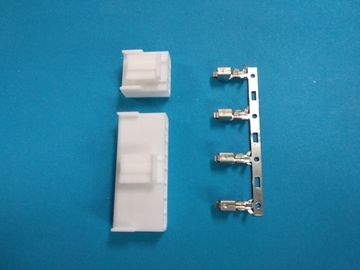

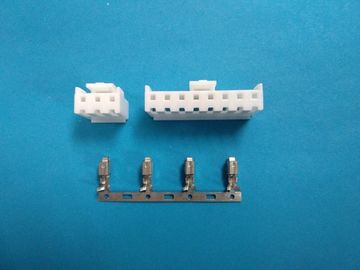

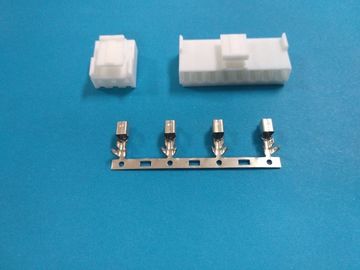

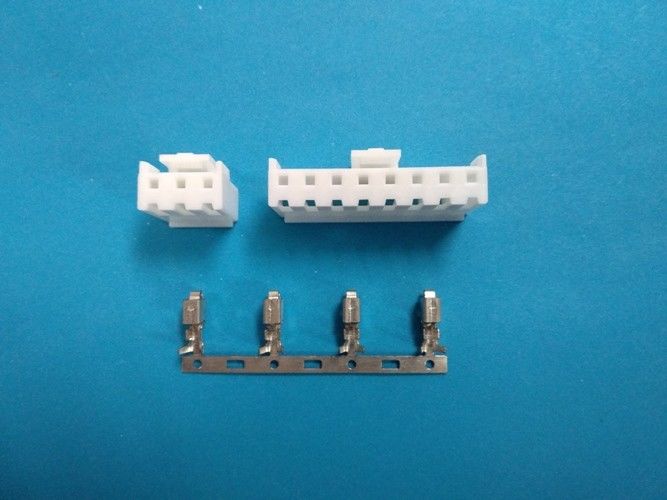

AWP2.0mm Pitch , Dip Type Wire to Board Connector , 2-15Pin , Tin-plated or Gold-plated
JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items.
Specification :
| Part no | JVT2005HNO-XX |
| Poles | 2-15 |
| Pitch | 2.0mm |
| Finish | Tin-plated or Gold-lated |
| Current rating | 2A AC/ DC |
| Voltage rating | 250V AC,DC |
| Insulation resistance | 1000MΩmin |
| Temperature range | -25°C~+85C° |
| Color | White |
| Package | 1000pcs/bag |
Payment Details :
Payment Terms :T/T or Western Union
Minimum Order :1000 Pieces
Samples :free
Equipments :
Main Markets :
Competitive Advantages :
♦ Connectors manufacturer with over 15 years experience
♦ Complete Product range
♦ Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS
♦ Close to Shenzhen Port
♦ Punctual & Short lead time
♦ Good quality & Competitive Price
