| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | UL ,RoHS ,REACH |
| Model Number: | JVT1121 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Tape&Reel |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000pcs per day |
| Terminal Part No: | JVT1121TP-SNX | Housing Part No: | JVT1121HNO-XX |
|---|---|---|---|
| Poles: | 2-16 | Pitch: | 3.96mm |
| Color: | White | Material: | Nylon 66 UL94V-0 |
| Finish: | Tin-plated | Wire Range: | 18AWG-22AWG |

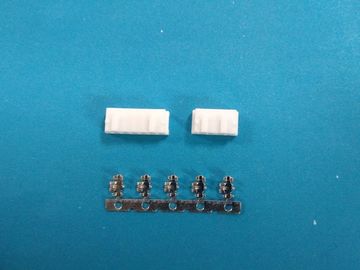

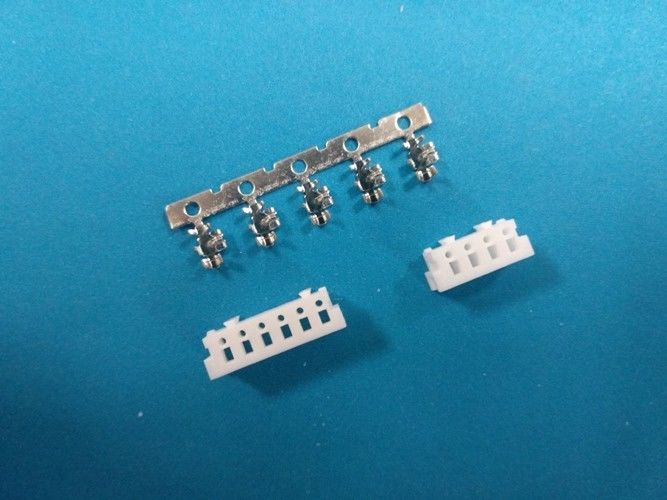

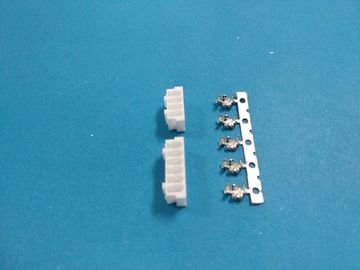

VH3.96mm Pitch , 2-16Pin ,PCB Connectors Wire to Board , Tin-plated , 18AWG-22AWG
JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items.
Specification :
| Catetory | PCB wire to board connector |
| Poles | 2-16 |
| Material | Nylon 66UL94V-0 |
| Voltage Rating | 250V AC,DC |
| Current Rating | 10A,AC,DC |
| Withstand Voltage | 1500V AC/minute |
| Contact Resistance | 10mΩmax |
| Insulation Resistance | 1000mΩmin |
| Finish | Tin-plated |
| Pitch | 3.96mm |
| Package | 1,000pcs/bag |
Housing drawing :
Terminal drawing :
Payment Details :
Payment Terms :T/T or Western Union
Minimum Order :1000 Pieces
Samples :free
JVT company strengths :
♦ Quality Approvals
♦ Prompt Delivery
♦ International Approvals
♦ Guarantee/Warranty
♦ Competitive Price
♦ Friendly Service
♦ Experienced Staff
