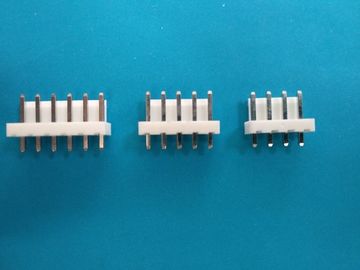

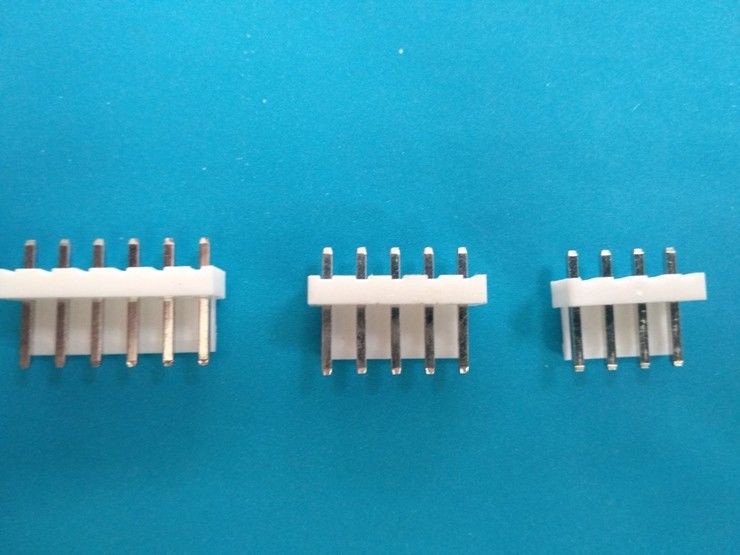

VH3.96mm Pitch , Tin-plated Dip Type , Board To Wire Connectors 2-16Pin

    • VH3.96mm Pitch , Tin-plated Dip Type , Board To Wire Connectors 2-16Pin
    • VH3.96mm Pitch , Tin-plated Dip Type , Board To Wire Connectors 2-16Pin
  • VH3.96mm Pitch , Tin-plated Dip Type , Board To Wire Connectors 2-16Pin

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT1120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: Negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 5~7working days
    Payment Terms: T/T
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Category: Wire To Board Connector Pitch: 3.96mm
    Poles: 2-16 Color: White
    Type: Dip Finish: Tin-plated
    Current Rating: 10A AC/ DC Voltage Rating: 250V AC,DC
    Insulation Resistance: 1000MΩmin Material: Nylon 66 UL 94V-0



    VH3.96mm Pitch , Tin-plated Dip Type , Wire to Board Connector , 2-16Pin


    JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items.





    Specification ​:


    Part no JVT1120WNO-XXSNX-D
    Poles 2-16
    Pitch 3.96mm
    Finish Tin-plated
    Current rating 10A AC/ DC
    Voltage rating 250V AC,DC
    Insulation resistance 1000MΩmin
    Temperature range -25°C~+85C°
    Color White
    Package 1000pcs/bag

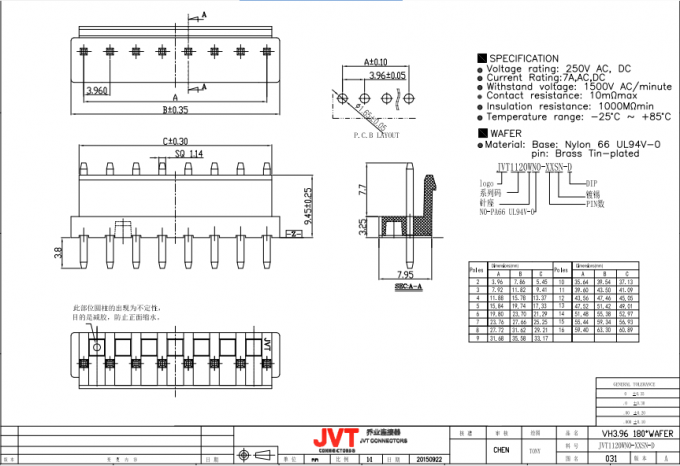

    Drawing :



    VH3.96mm Pitch , Tin-plated Dip Type , Board To Wire Connectors 2-16Pin




    Payment Details :



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces

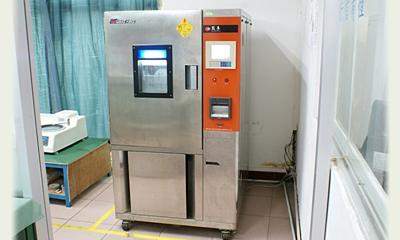

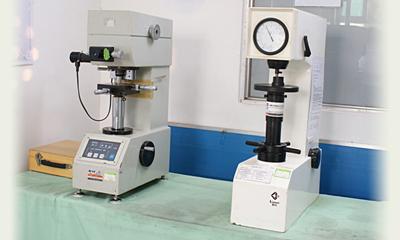

    Equipmens :



    VH3.96mm Pitch , Tin-plated Dip Type , Board To Wire Connectors 2-16Pin





    VH3.96mm Pitch , Tin-plated Dip Type , Board To Wire Connectors 2-16Pin





    Main Export Markets :

    ♦ Asia

    ♦ Australia

    ♦ Central/South America

    ♦ Mid East/Africa/North America





    Primary Competitive Advantages:

    ♦  Country of Origin

    ♦  Packaging

    ♦  Small Orders Accepted

    ♦  Quality Approvals

    ♦  Innovative Service

    ♦  Superiority of price
