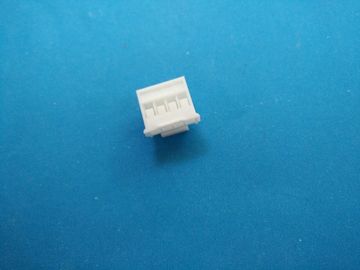

PHS Housing With Lock , 2.0mm Pitch Connector , 4 Pin Male Housing Connector 2-16 Poles

    • PHS  Housing With Lock , 2.0mm Pitch Connector ,  4 Pin Male Housing Connector 2-16 Poles
    • PHS  Housing With Lock , 2.0mm Pitch Connector ,  4 Pin Male Housing Connector 2-16 Poles
    • PHS  Housing With Lock , 2.0mm Pitch Connector ,  4 Pin Male Housing Connector 2-16 Poles
  • PHS  Housing With Lock , 2.0mm Pitch Connector ,  4 Pin Male Housing Connector 2-16 Poles

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT1128HNO-04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 5 days
    Payment Terms: T/T
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Series: PHS Pitch: 2.0mm
    Contacts: 4 Rows: 1
    Type: Wire To Board Temperature: -40°C ~ +85°C

    PHS Housing with Lock, 2.0mm Pitch, 4pin Wire to Board connector ,male housing connector 2-16 poles



    Datasheet (PDF) & Other Documents Download center:

    1.JVT1128HNO-XXL(QY) Model (1).pdf



    Product Details:



     PHS series Locking connector

    The PHS Series of Locking  connector  from JVT are available in wafer ,housing ,terminal  and feature natural (white) colour UL 94V-0 rated mouldings and tin plated posts. For typical mating PHS  series  contacts and wafer  see JVT1128TP-SNS  and JVT1129WNO-04SN-D  respectively.



    2.0mm Wire-to-Board Connectors, PHS Series

    The PHS Series of 2.0mm pitch wire-to-board connectors from JVT are capable of carrying large currents in a compact connector size. Design features include box contacts, polarized housings and secure locking mechanisms.



    Drawing:



    PHS  Housing With Lock , 2.0mm Pitch Connector ,  4 Pin Male Housing Connector 2-16 Poles





    More Products:



    PHS  Housing With Lock , 2.0mm Pitch Connector ,  4 Pin Male Housing Connector 2-16 Poles



    PHS  Housing With Lock , 2.0mm Pitch Connector ,  4 Pin Male Housing Connector 2-16 Poles



    Application:



    Our products are widely used in a variety of markets and applications, including:

    • Telecom and datacom systems and equipment
    • Computers, peripherals, systems
    • Industrial controls and robotics
    • Instrumentation
    • Medical
    • Test and Measurement
    • Automotive
    • Avionic and Military

    JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items .



    How to get a quote:



    1.You send us the drawing or specs or photo  which can tell us what you need,as well as quantity to our email account at diana@jvtcn.com .Yours RFQ will be replied within 8 hours.
    2.You can also call us at 0086-13712535997
    3.You can contact us via skype ID at diana-weiying or QQ:2765736481
