JST VH, 3.96mm Pitch Connector 2 Way 1 Row Shrouded , Top Entry PCB Header , Through Hole , Solder Termination

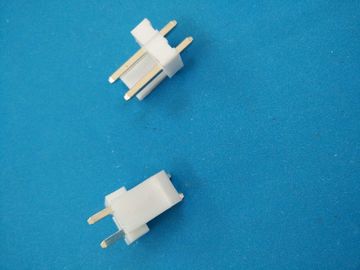

    • JST VH, 3.96mm Pitch Connector 2 Way 1 Row Shrouded , Top  Entry PCB Header , Through Hole , Solder Termination

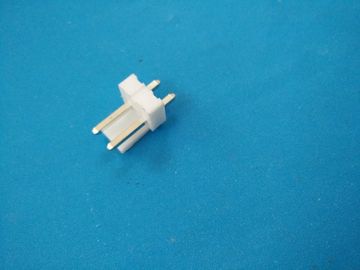

    • JST VH, 3.96mm Pitch Connector 2 Way 1 Row Shrouded , Top  Entry PCB Header , Through Hole , Solder Termination
  • JST VH, 3.96mm Pitch Connector 2 Way 1 Row Shrouded , Top  Entry PCB Header , Through Hole , Solder Termination

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT1120WNO-02SN-D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 5 days
    Payment Terms: T/T
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Series: VH Pitch: 3.96mm
    Number Of Contacts: 2 Number Of Rows: 1
    Body Orientation: Top Entry Shrouded: Shrouded
    Mounting Type: Through Hole Termination Method: Solder
    Contact Material: Tin Plated Brass Type: Wire To Board

    JST VH, 3.96mm Pitch, 2 Way, 1 Row Shrouded, Top Entry PCB Header, Through Hole, Solder Termination



    Datasheet (PDF) & Other Documents Download center:

    1.JVT1120WN0-XXSNX-D.pdf



    Product Details:



    JST VH series Locking PCB Headers

    The VH Series of Locking Headers from JVT are available in top-entry and side-entry types and feature natural (white) colour UL 94V-0 rated mouldings and tin plated posts. For typical mating VH series housings and contacts see JVT1121HNO-XX  and JVT1121TP-SNS  respectively.



    3.96mm Wire-to-Board Connectors, JST VH Series

    The VH Series of 3.96mm pitch wire-to-board connectors from JST are capable of carrying large currents in a compact connector size. Design features include box contacts, polarized housings and secure locking mechanisms.



    Drawing:



    JST VH, 3.96mm Pitch Connector 2 Way 1 Row Shrouded , Top  Entry PCB Header , Through Hole , Solder Termination



    More Products:



    JST VH, 3.96mm Pitch Connector 2 Way 1 Row Shrouded , Top  Entry PCB Header , Through Hole , Solder Termination

    JST VH, 3.96mm Pitch Connector 2 Way 1 Row Shrouded , Top  Entry PCB Header , Through Hole , Solder Termination



    Application:



    Our products are widely used in a variety of markets and applications, including:

    • Telecom and datacom systems and equipment
    • Computers, peripherals, systems
    • Industrial controls and robotics
    • Instrumentation
    • Medical
    • Test and Measurement
    • Automotive
    • Avionic and Military

    JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items .



    How to get a quote:                                                                                                        1.You send us the drawing or specs or photo  which can tell us what you need,as well as quantity to our email account at diana@jvtcn.com .Yours RFQ will be replied within 8 hours.
    2.You can also call us at 0086-13712535997
    3.You can contact us via skype ID at diana-weiying or QQ:2765736481
