| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | UL ,RoHS ,REACH |
| Model Number: | JVT 2041 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Tape&Reel |
| Delivery Time: | 6-9working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000pcs per day |
| Part No.: | JVT2041WHO-2XXSN-D | Poles: | 8-40 |
|---|---|---|---|
| Pitch: | 2.0mm | Material: | Nylon 46 UL94V-0 |
| Type: | DIP | Finish: | Tin-plated |

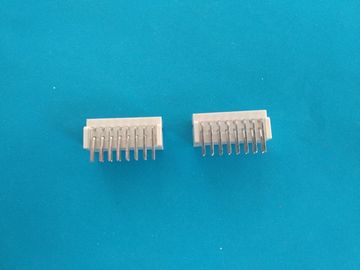

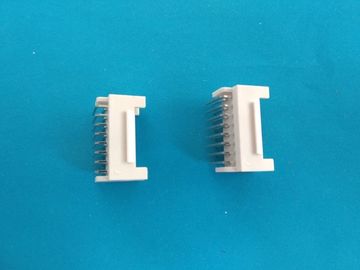

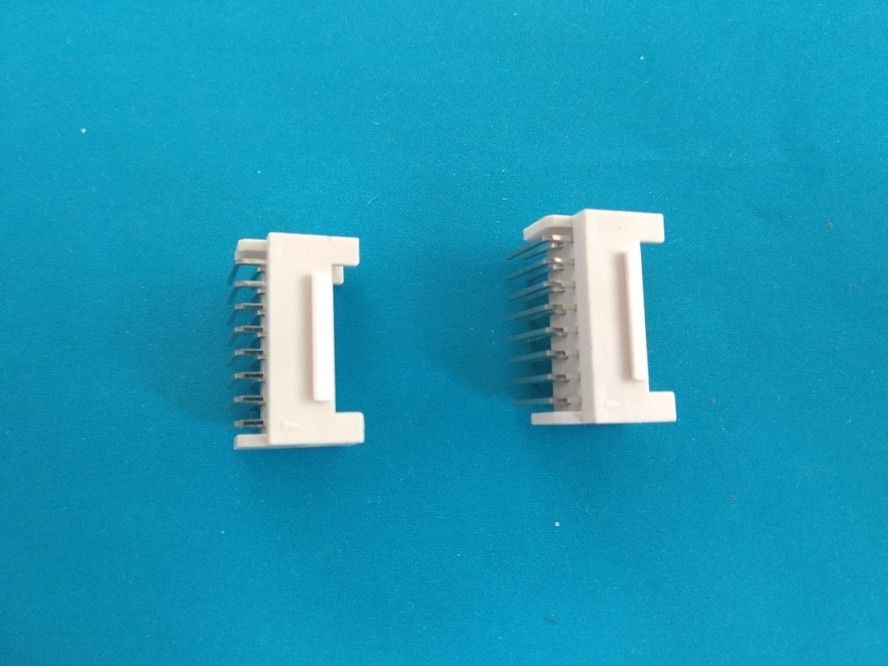

PHB2.0mm Right Angle , Double Row , PCB Connectors Wire to Board , 8-40Pin
JVT offer a complete range of board to board and wire to board connectors including :pin,mini jumpers, female header,PCB Multipole and housing a wide range of applications including:industrial,Medical and automotive.
All are offered with small moq's,the majority being stocked items.
Specification :
| Category | PCB Connectors Wire to Board |
| Material | Nylon46 UL94V-0 |
| Pitch | 2.0mm |
| Poles | 8-40 |
| Color | White |
| Voltage rating | 250V AC/DC |
| Current rating | 5A AC/DC |
| Withstand voltage | 1000V AC/minute |
| Working temperature | -25°C to +85°C |
| Contact resistance | 30MΩ Max |
| Insulation resistance | 1000MΩ Min |
| Samples | free |
| package | 1000pcs/bag |
