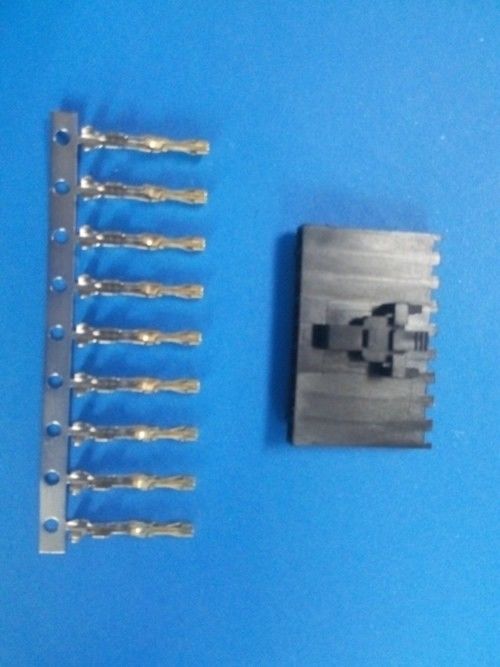

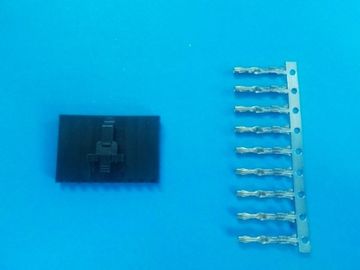

Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board

    • Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board
    • Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board
  • Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT 1142

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000
    Price: Negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 6-9 working days
    Payment Terms: T/T
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Row: Single Poles: 2-20
    Pitch: 2.54mm Material: PA66/PBT UL94V-0
    Color: Black Current Rating: 2.5A,AC,DC
    Voltage Rating: 130V AV,DC Temperature Range: -25°C -+85°C



    Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board


    JVT offer a complete range of board to board and wire to board connectors including :pin

    header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive.

    All are offered with small moq's ,the majority being stocked item.



    Specification​:


    Category PCB Connectors Wire to Board
    Equivalent Molex
    Pitch 2.54mm
    Poles 2-20
    Color Black
    Voltage rating 250V AC/DC
    Current rating 2.5A AC/DC
    Withstand voltage 1000V AC/minute
    Working temperature -25°C to +85°C
    Contact resistance 20MΩ Max
    Insulation resistance 1000MΩ Min
    Material PBT UL94V-0
    Sample Free



    Drawing:



    Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board





    Single Row 2-20 PIN , 2.54mm Pitch , PCB Connectors Wire to Board
