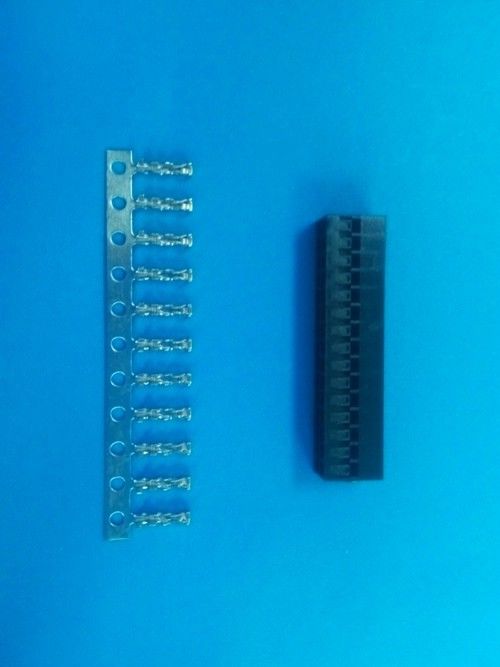

Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black

    • Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black
    • Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black
  • Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT 1164

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: Negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 5-7 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Row: Double Poles: 2*2-2*30
    Pitch: 2.0mm Material: PBT UL94V-0
    Color: Black Current Rating: 1A,AC,DC
    Voltage Rating: 130V AV,DC Insulation Resistance: 1000Ωmin



    Double Row 2-30 PIN , 2.0mm Pitch , Wire to board Connector , Color Black


    JVT offer a complete range of board to board and wire to board connectors including :pin

    header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items.



    Drawing:



    Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black





    Specification​:


    Temperature range -25°C - +85°C
    Contact Resistance 20mΩ
    Insulation Resistance 1000MΩ
    Poles 2*2-2*30
    Voltage Rating 250V AC/DC
    Current Rating 1A AC/DC
    Withstanding voltage 800V AC/minute

    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Samples:Free



    Primary Competitive Advantages:



    • Country of Origin

    • Packaging

    • Small Orders Accepted

    • Quality Approvals

    • Innovative Service

    • Superiority of price


    Equipment :

    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines.

    Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black

    Double Row 2-30 PIin, Wire to board Connector , Housing and Terminal, Color in Black
