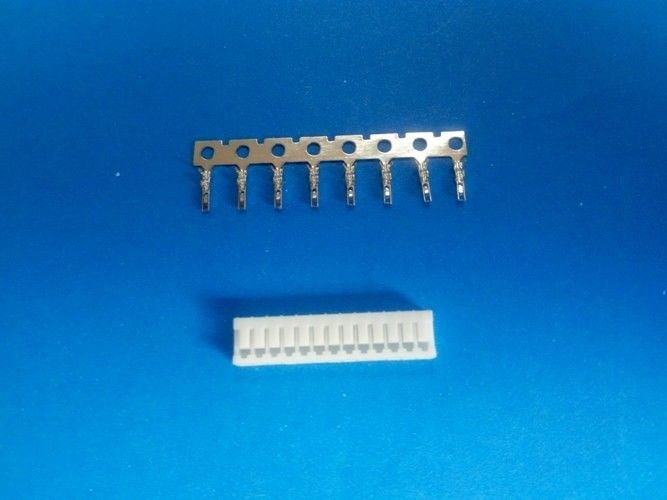

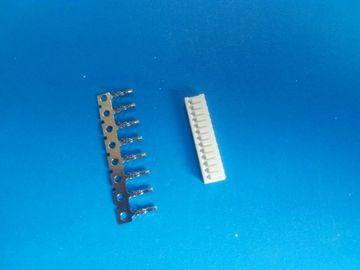

1.5mm Pitch Connector , 2-16PIN , Wire to Board Connector , Material PA66 UL 94V-0

    • 1.5mm Pitch Connector , 2-16PIN , Wire to Board Connector , Material PA66 UL 94V-0
    • 1.5mm Pitch Connector , 2-16PIN , Wire to Board Connector , Material PA66 UL 94V-0
  • 1.5mm Pitch Connector , 2-16PIN , Wire to Board Connector , Material PA66 UL 94V-0

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT 1501

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: Negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 6-8 working days
    Payment Terms: T/T
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Material: PA66 UL94V-0 Poles: 2-16
    Pitch: 1.5mm Color: White
    Voltage Rating: 50V AC,DC Current Rating: 1A



    1.5mm Pitch Connector , 2-16PIN , Wire to Board Connector , Material PA66 UL 94V-0


    JVT offer a complete range of board to board and wire to board connectors including : pin

    header,mini jumpers,female header,PCB Multipole and housing a wide range of applications including : industrial ,Medical and automotive.

    All are offered with small moq's,the majority being stocked items.





    Specification​:



    Category PCB Connectors Wire to Board
    Material PA66 UL94V-0
    Pitch: 1.5mm
    Poles: 2-16
    Applicable wire: AWG#28-30
    Voltage rating: 50V AC/DC
    Current rating: 1A
    Withstand voltage 500V AC/minute
    Working temperature: -25°C to +85°C
    Contact resistance: 500MΩ Min
    ins.(OD)range 1.2max
    Terminal thickness  0.2mm
    Samples free





    Drawing:



    1.5mm Pitch Connector , 2-16PIN , Wire to Board Connector , Material PA66 UL 94V-0





    Payment Details:



    Payment Terms:T/T



    Minimum Order:1000 Pieces



    JVT Competitive Advantages:



    ♦ Products with Good Performance

    ♦ High-Efficiency Lead Time

    ♦ Friendly Service

    ♦ Experienced Staff

    ♦ International Approvals

    ♦ Competitive Price



    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality



    Equipment:



    1.5mm Pitch Connector , 2-16PIN , Wire to Board Connector , Material PA66 UL 94V-0







    1.5mm Pitch Connector , 2-16PIN , Wire to Board Connector , Material PA66 UL 94V-0



    1.5mm Pitch Connector , 2-16PIN , Wire to Board Connector , Material PA66 UL 94V-0
