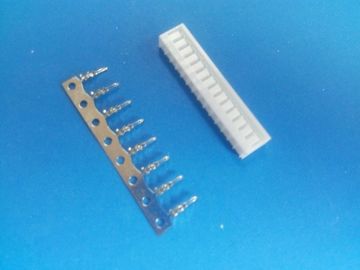

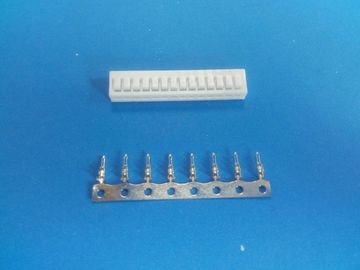

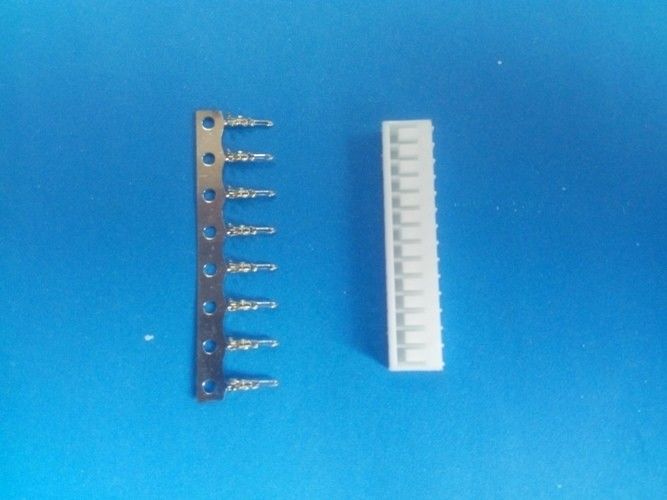

Pitch 2.0mm , PCB Connectors Wire to Board , 2-16PIN , Tin-plated

    • Pitch 2.0mm , PCB Connectors Wire to Board , 2-16PIN , Tin-plated
    • Pitch 2.0mm , PCB Connectors Wire to Board , 2-16PIN , Tin-plated
    • Pitch 2.0mm , PCB Connectors Wire to Board , 2-16PIN , Tin-plated
  • Pitch 2.0mm , PCB Connectors Wire to Board , 2-16PIN , Tin-plated

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT 1130

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: Negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 6-8 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Category: PCB Connectors Wire To Board Poles: 2-16
    Pitch: 2.0mm Color: White
    Material: Nylon66 UL94V-0 Wire Range: AWG#24-30



    Pitch 2.0mm , PCB Connectors Wire to Board , 2-16PIN , Tin-plated


    JVT offer a complete range of board to board and wire to board connectors including :pin

    header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items.





    Specification​:



    Category PCB Connectors Wire to Board
    Material  Nylon66 UL94V-0
    Pitch: 2.0mm
    Poles: 2-15
    Applicable wire: AWG#24-30
    Voltage rating: 250V AC/DC
    Current rating: 2A AC/DC
    Withstand voltage 800V AC/minute
    Working temperature: -25°C to +85°C
    Contact resistance: 20MΩ Max
    Insulation resistance: 1000MΩ Min
    Samples free
    package 1000pcs/bag







    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Samples: Free



    Main Export Markets:

    • Asia

    • Australia

    • Central/South America

    • Mid East/Africa/North America





    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality





    Equipment:



    Pitch 2.0mm , PCB Connectors Wire to Board , 2-16PIN , Tin-plated



    Pitch 2.0mm , PCB Connectors Wire to Board , 2-16PIN , Tin-plated











    Pitch 2.0mm , PCB Connectors Wire to Board , 2-16PIN , Tin-plated
