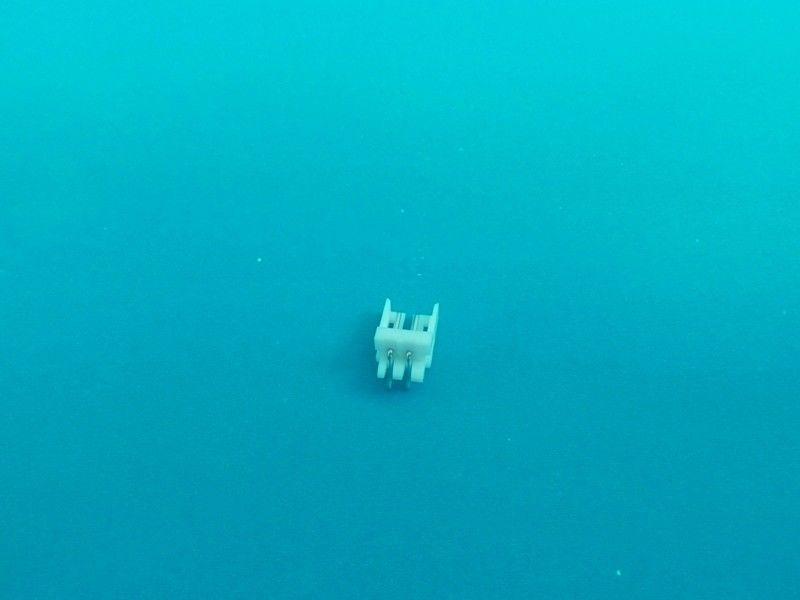

2.0mm Pitch PCB Connectors Wire to Board 2 Pin-15Pin Tin plated / Gold plated

2.0mm Pitch PCB Connectors Wire to Board 2 Pin-15Pin Tin plated / Gold plated

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: UL ,RoHS ,REACH
Model Number: JVT 2006

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: negotiation
Packaging Details: Tape&Reel
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 500000pcs per day
Contact Now
Detailed Product Description
Pitch: 2.0mm Poles: 2-15
Color: White Material: Nylon 66 UL94V-0

2.0mm Pitch,PCB Connectors Wire to Board , 2 Pin-15Pin,Tin-plated/Gold-plated

JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive.

All are offered with small moq's ,the majority being stocked items.



Specification​:


Temperature range -25°C - +85°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Poles
2-15
Voltage Rating 250V AC/DC
Current Rating 2A AC/DC
Withstanding voltage 800V AC/minute
