| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | UL ,RoHS ,REACH |
| Model Number: | JVT 1108 |
| Minimum Order Quantity: | 2000 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Tape&Reel |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000pcs per day |
| Category: | Wire To Board Connector | Poles: | 1-20 |
|---|---|---|---|
| Pitch: | 2.54mm | Color: | Black |

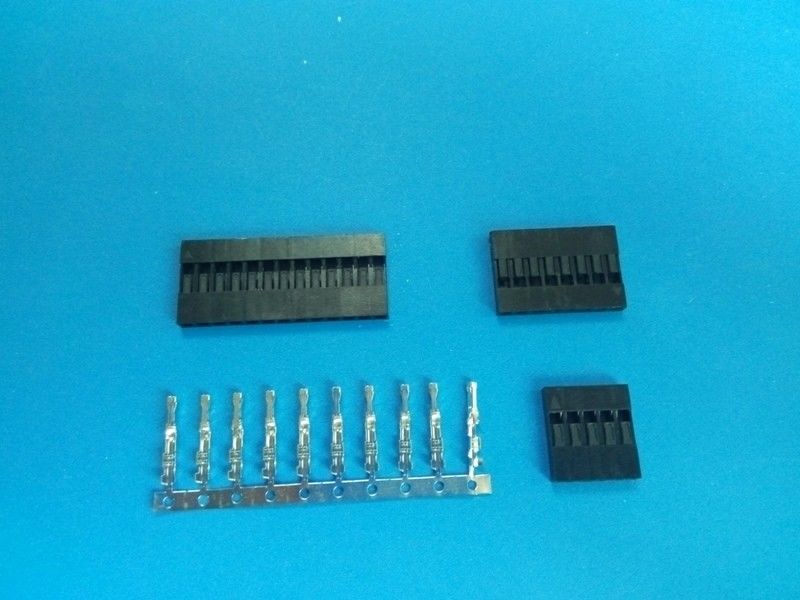

PBT UL94v-0, Wire To Board Connector , 2.54mm pitch , 1 - 20 Pin ,Black color
JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
Drawing:
Specification:
| Temperature range | -25°C - +85°C |
|---|---|
| Contact Resistance | 20mΩ |
| Insulation Resistance | 1000MΩ |
| Poles | 1-20 |
| Voltage Rating | 250V AC/DC |
| Current Rating | 3A AC/DC |
| Withstanding voltage | 1000V AC/minute |
Machines:
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:2000 Pieces
• Asia
• Australia
• Central/South America
• Mid East/Africa/North America
Service:
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
