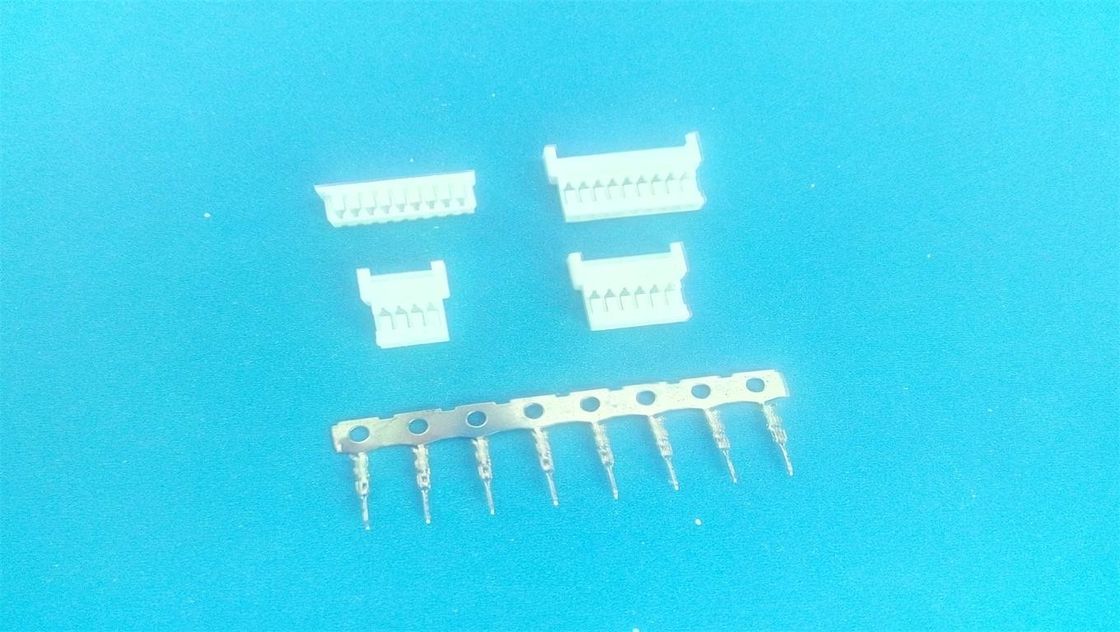

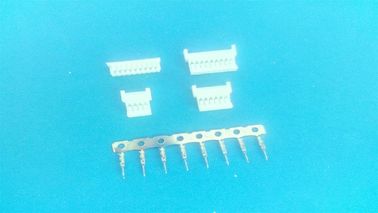

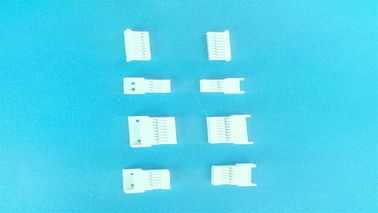

JVT 1146 1.25 Mm Pitch Connector , 2 Pin - 16 Pin PCB Connector UL Approved

JVT 1146 1.25 Mm Pitch Connector , 2 Pin - 16 Pin PCB Connector UL Approved

    • JVT 1146 1.25 Mm Pitch Connector , 2 Pin - 16 Pin PCB Connector UL Approved
    • JVT 1146 1.25 Mm Pitch Connector , 2 Pin - 16 Pin PCB Connector UL Approved
  • JVT 1146 1.25 Mm Pitch Connector , 2 Pin - 16 Pin PCB Connector UL Approved

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT 1146

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000
    Price: 0.001
    Packaging Details: Tape&Reel
    Delivery Time: 5-7days
    Payment Terms: T/T
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Pitch: 1.25mm Poles: 2-16
    Terminal Thickness: 0.15mm Wire Range: 28AWG-32AWG
    Terinal Material: Phosphor Bronze Housing Material&Wafer Miterial: PA66 UL94v-2

    Pitch 1.25mm ,Wire to Board Connector,2Pin-16Pin,PCB wire to board



    JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items .



    Specification​:


    Terminal Material Phosphor Bronze
    Wire Range AWG#28-32
    Contact Resistance 20mΩ
    Insulation Resistance 100MΩ
    Poles
    2-16
    Voltage Rating 125v AC/DC
    Current Rating 1A AC/DC
    Temperature Range -25°C ... +85°C
    Withstanding voltage

    250V AC/minute
