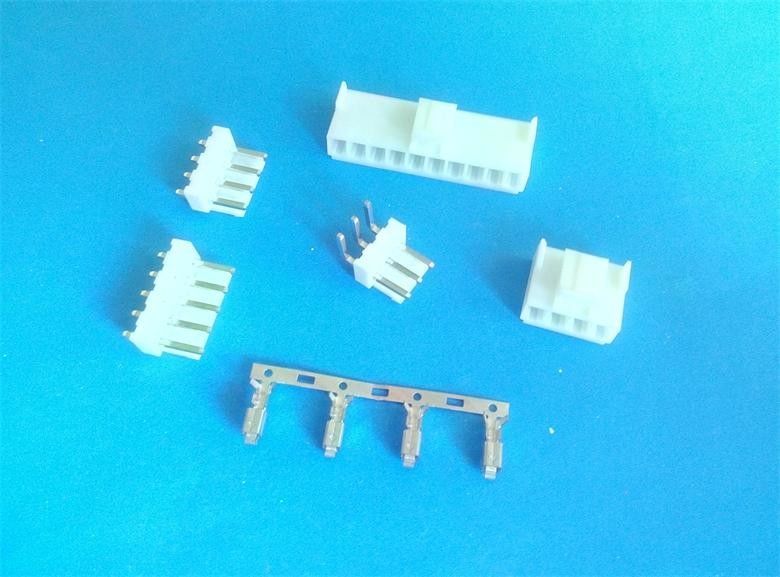

2 Pin Wire To Board Connector JVT 1121 3.96 mm Pitch Terminal Housing / Wafer

2 Pin Wire To Board Connector JVT 1121 3.96 mm Pitch Terminal Housing / Wafer

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: UL ,RoHS ,REACH
Model Number: JVT 1121

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: 0.001
Packaging Details: Tape&Reel
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 500000pcs per day
Contact Now
Detailed Product Description
Pitch: 3.96mm Poles: 2-16
Terminal Thickness: 0.25mm Wire Range: 18AWG-22AWG
Terinal Material: Phosphor Bronze Housing Material&Wafer Miterial: Nylon 66 UL94v-0
Name: 3.96 Mm Pitch Connector

Pitch 3.96mm Terminal Housing&Wafer,Wire to board connector,Poles 2-16



JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .



Specification​:


Terminal Material Phosrhor bronze
Wire Range 18AWG-22AWG
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Poles
2-16
Voltage Rating 250v AC/DC
Current Rating 10A AC/DC
Temperature Range -25°C ... +85°C
Withstanding voltage 1500V AC/minute
