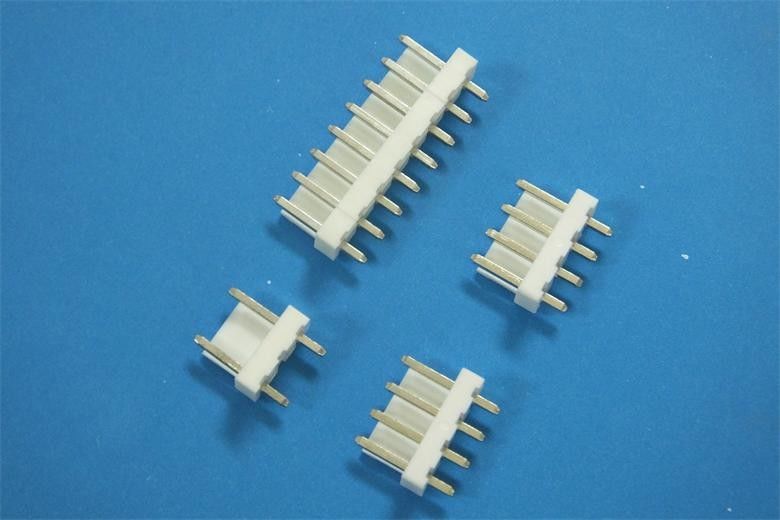

NH 3.96mm Wire To Board Connector Pin 2-16 Finish Tin Plated Wire Range 18AWG - 20AWG

NH 3.96mm Wire To Board Connector Pin 2-16 Finish Tin Plated Wire Range 18AWG - 20AWG

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: UL ,RoHS ,REACH
Model Number: JVT1121

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: 0.01
Packaging Details: Tape&Reel
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union
Supply Ability: 500000
Contact Now
Detailed Product Description
Terminal Material: Phosphor Bronze Pitch: 3.96mm
Poles: 2-16 Housing Material: Nylon 66 UL 94V-0

NH3.96mm,Wire to Board Connector,Pin 2-16,Terminal Finish Tin plated



JVT offer a complete range of board to board and wire to board  connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .



Specification​:



Terminal Material Phosrhor bronze
Wire Range 18AWG-22AWG
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Finish Tin-plated
Voltage Rating 250v AC/DC
Current Rating 10A AC/DC
Temperature Range -25°C ... +85°C
Withstanding voltage 1500V AC/minute
