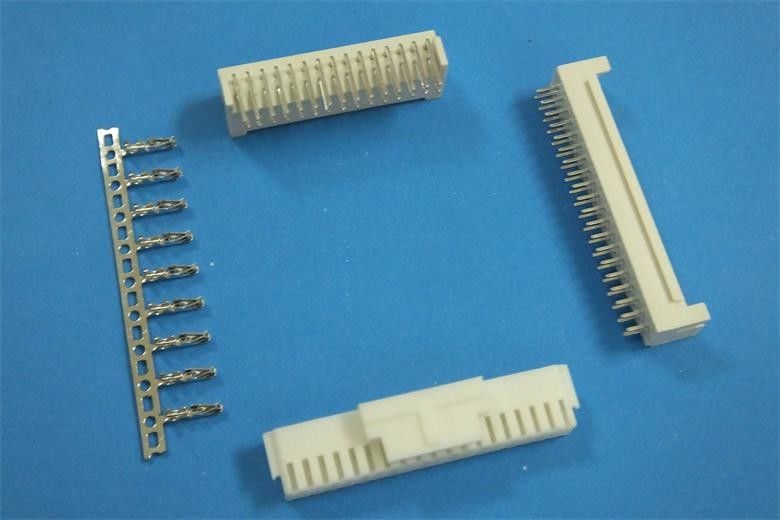

PHB 2.0mm Wire To Board Connector Phosphor Bronze Material With Tin Plated Finish

PHB 2.0mm Wire To Board Connector Phosphor Bronze Material With Tin Plated Finish

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: UL ,RoHS ,REACH
Model Number: JVT-2041

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: 0.001
Packaging Details: Tape&Reel
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 500000
Contact Now
Detailed Product Description
Material: Phosphor Bronze Pitch: 2.0mm
Poles: 8-40 Type: DIP

SH 1.0mm PCB board connector ,6pin ,top entry , LCP material ,tape&Reel with cap packaging



JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .



Specification​:



InsulationO.D 1.6mm
Contact Material Phosrhor bronze
Applicable wire AWG#22-#28
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Finish Tin-plated
Voltage Rating 250v AC/DC
Current Rating 5A AC/DC
Temperature Range -25°C ... +85°C
Withstanding voltage 1000V AC/minute
