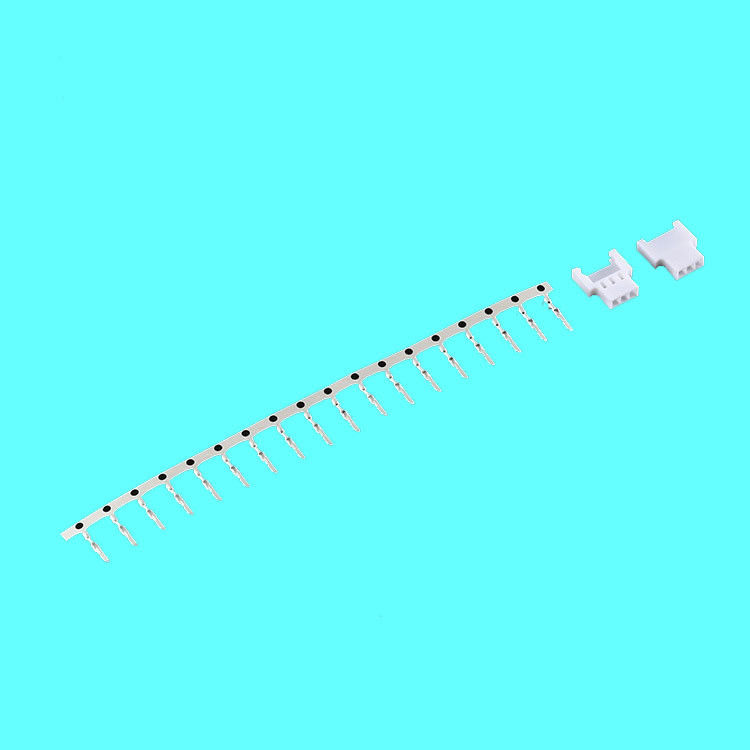

JVT 2.0mm Pitch Wire to Wire Female & Male Connector and Terminal in White Color

JVT 2.0mm Pitch Wire to Wire Female & Male Connector and Terminal in White Color

    • JVT 2.0mm Pitch Wire to Wire Female & Male Connector and Terminal in White Color
    • JVT 2.0mm Pitch Wire to Wire Female & Male Connector and Terminal in White Color
  • JVT 2.0mm Pitch Wire to Wire Female & Male Connector and Terminal in White Color

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2003&2004-Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Equivalent: Molex 51005&51006 Series Pitch: 2.0mm
    Poles: 2 - 16 Packaging Type: PE Bag Packing

    2.00mm Pitch Wire-to-Wire Plug Housing connector , 6 Circuits,Gender:male/female ,cross molex 51006 series



    Detailed Features:



    Part Number: JVT2003&JVT2004



    Color - Resin: Natural



    Flammability :94V-0



    Category: 2.0mm pitch



    Equivalent: Molex 51006-0600





    Molex 51005/51006 2.0mm Wire to Board Connector with Poles 2 - 16





    Standardized Specification:



    Scale

    2.0mm

    Cables

    2-16

    Applicable wire

    AWG#24-28

    Rating Voltage

    125V AC/DC

    Rating Current

    2A AC/DC

    Withstand voltage

    500V AC/minute

    Operating temperature

    -25°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max.




    Material Specification :



    Terminal: Phosphor Bronze ,Tin plated



    Housing: PBT UL 94V-0



    Technical Datasheet:



    JVT 2.0mm Pitch Wire to Wire Female & Male Connector and Terminal in White Color



    JVT 2.0mm Pitch Wire to Wire Female & Male Connector and Terminal in White Color



    JVT 2.0mm Pitch Wire to Wire Female & Male Connector and Terminal in White Color



    JVT 2.0mm Pitch Wire to Wire Female & Male Connector and Terminal in White Color

















    •
