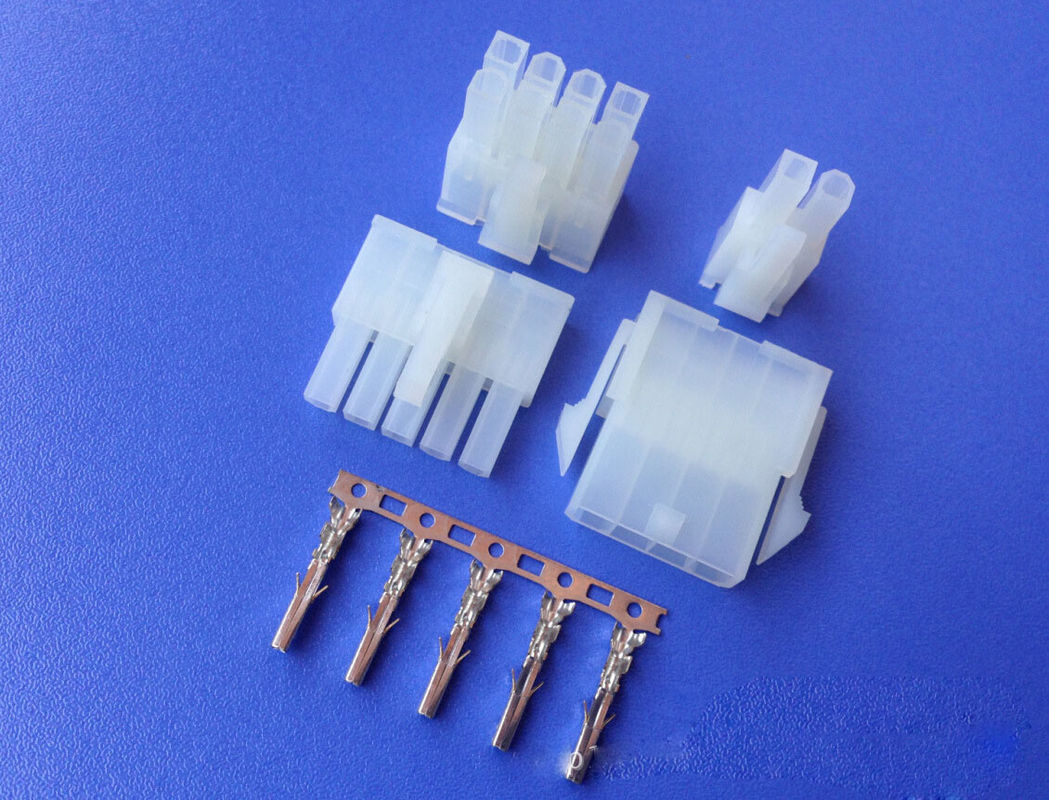

4 Circuits Wire to Wire Connector Mini - Fit 4.2mm Pitch Easy To Operate

4 Circuits Wire to Wire Connector Mini - Fit 4.2mm Pitch Easy To Operate

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1148&1149-S

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Equivalent: Molex 39-020-2020 Pitch: 4.2mm
Application: Power, Wire-to-Board, Wire-to-Wire Gender: Receptacle
Color: White And Black Applicable Wire: AWG#18-22

Mini-Fit 4.2mm Receptacle Housing wire to wire connector , Dual Row, 4 Circuits, UL 94V-2, Natural




Positive locking housings
Easy to operate thumb latch assures connectors are fully mated.
Positive locking prevents accidental unmating.

Available in UL94V-0, V-2, 265°C reflow, Glow-Wire and Low-Halogen compliant materials
Ideal for many applications to meet global material requirements

Mini-Fit 4.2mm Pitch Receptacle Housing Wire to Wire Connector Dual Row 4 Circuits



Mini-Fit® Jr. Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 16 Circuits, PA Polyamide Nylon 6/6 94V-2,0.76µm Gold (Au) Plating

Specifications :



Part Number: JVT1148&JVT1149

Category: wire to board connector ,power connector ,wire to wire connector

Terminal: Brass , Tin-plated

Housing: PA66,UL94V-2

Wafer: Nylon 66 ,Tin plated



Pitch: 4.2mm

Poles:4

Applicable wire: AWG#18-22

Voltage rating: 250V AC/DC

Current rating: 7A AC/DC

Withstand voltage: 1500V AC/minute

Working temperature: -25°C to +85°C

Insulation resistance: 1000MΩ Min

Contact resistance: 10MΩ Max.





Drawing



4 Circuits Wire to Wire Connector Mini - Fit 4.2mm Pitch Easy To Operate4 Circuits Wire to Wire Connector Mini - Fit 4.2mm Pitch Easy To Operate4 Circuits Wire to Wire Connector Mini - Fit 4.2mm Pitch Easy To Operate



Our advantage





Favorable unit price



Strict quality control



Shortest lead time



Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)



Accelerated equipments:10 automated injection molding
                                        20 automated pin - setting
                                       6 high precision stamping machines






Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
