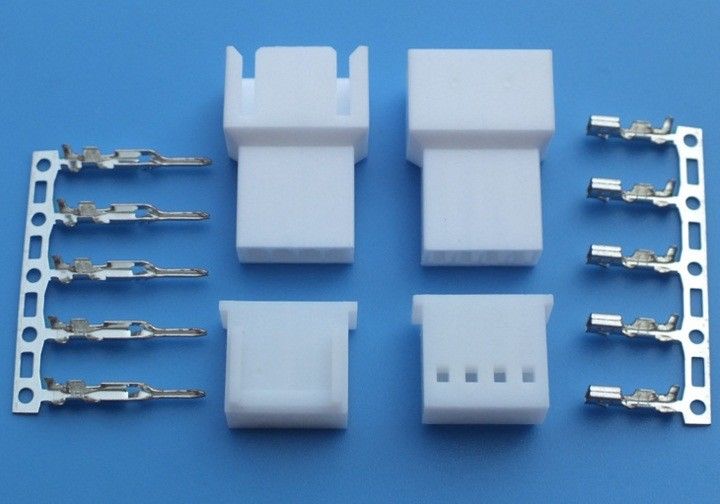

JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal

JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal

JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2540&JVT2541

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Color: Black And White Pitch: 2.5mm
Contact Material: Phosphor Bronze Poles: 2-12

2.5mm Pitch 5A AC / DC Wire to Wire Connector , Tin Plated 2 - 12 Pin Terminal Connectors



2.5mm Pitch for Wire to Wire Connector Applied with 5A AC / DC





Specification Standardized:



Pitch: 2.5mm                                                         Poles: 2-12

Applicable wire:                                                     Voltage rating: 250V AC/DC

Current rating: 5A AC/DC                                     Withstand voltage: 5A AC/DC

Working temperature: -25°C to +85°C                  Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.





JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal



JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal



JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal



JVT 2.5mm Pitch Wire to Wire Connector Male and Female Mating Housing and Terminal







Material Specification :



Terminal: Phosphor Bronze ,Tin plated



Housing: PA66,UL94V-2



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
