Tin plated Right Angle Wire to Board PCB Connector JVT Equivalent of Molex 4.2mm

Tin plated Right Angle Wire to Board PCB Connector JVT Equivalent of Molex 4.2mm

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1148&1149-S

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Category: Wire To Board Crimp Style Connectors Cross Part: Molex 4.2mm
Type: DIP Type, Right Angle PC Board Mounting Direction: Top Entry, Side Entry
Color: White Poles: 2*1-2*12

Equivalent of Molex 4.2mm, Tin-plated Right Angle, DIP Wafer Connector, Wire to Board

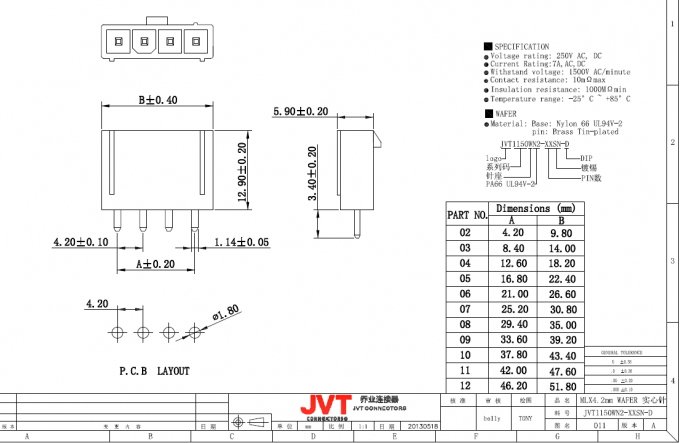

Drawing



Tin plated Right Angle Wire to Board PCB Connector JVT Equivalent of Molex 4.2mm





Standardized Specification:



Pitch

4.2mm

No.of contact

 2*1-2*12





Rating Voltage

250V AC/DC

Rating Current

7A  AC/DC

Voltage Withstand

1500V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

10MΩ Max.



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & technology team



puntual delivery time and complete packaging process



preferable price and best quality
