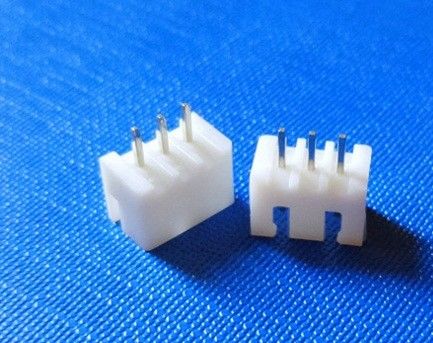

Vertical Type Wafer Tin Plated Wire to Board Connector 2.5mm Pitch 3 Pin DIP

Vertical Type Wafer Tin Plated Wire to Board Connector 2.5mm Pitch 3 Pin DIP

    • Vertical Type Wafer Tin Plated Wire to Board Connector 2.5mm Pitch 3 Pin DIP
    • Vertical Type Wafer Tin Plated Wire to Board Connector 2.5mm Pitch 3 Pin DIP
  • Vertical Type Wafer Tin Plated Wire to Board Connector 2.5mm Pitch 3 Pin DIP

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT1001WN0-03SN-D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per week
    Contact Now
    Detailed Product Description
    Category: Wire To Board Connector Application: PCB Board
    Orientation: Vertical Type Number Of PIns: 3
    Plating: Tin Plated Equivalent: JST-XH
    Number Of Circuits: 2-20 Current Rating: 3A

    2.5mm Pitch 3 Pin DIP Vertical Type Wafer Tin Plated Wire to Board Connector



    Friendly Link:



    Cross Part number list.pdf

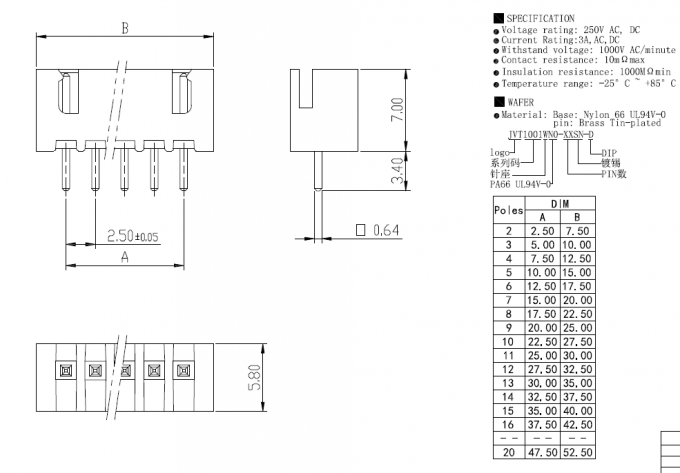

    Technical Datasheet:



    Vertical Type Wafer Tin Plated Wire to Board Connector 2.5mm Pitch 3 Pin DIP



    Competitive Advantages:



    We are connectors manufacturer with over 15 years experience.



    1. Complete Product range.



    2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.



    3. Close to Shenzhen Port.



    4. Punctual & Short lead time.



    5. Good quality & Competitive Price.



    Application:



    Car audio Household appliances
    Photocopier GPS
    Fax machine The set-top box
    Printer Control panel



    Payment Details:





    Payment Terms:T/T in advance



    Minimum Order:1000 Pieces



    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America
