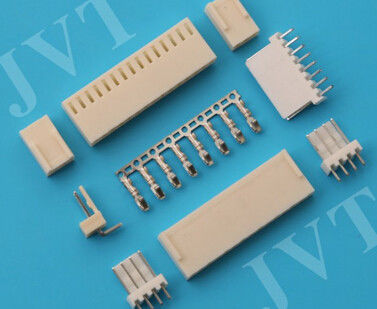

10 Circuits Board Wire 2.54 Mm Pitch Connector

10 Circuits Board Wire 2.54 Mm Pitch Connector

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT8001

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Equivalent: Molex Pitch: 2.54mm
No.of Rows: 1 No.of Contact: 2-16
Contact Material: Brass Contact Plating: Tin Plated

10 Circuits Board  Wire Connector Vertical with Friction Lock Tin Plating Cross Molex 6410 Series





2.54mm Wire-to-Board PCB  Header, Vertical, with Friction Lock, 10 Circuits, Tin (Sn) Plating,cross molex part number 22-27-2101





Payment &shipping Terms :


Minimum Order Quantity: 1000 PCS
Shipping terms:By express or by sea
Delivery Time :7-10 working days
Packaging Details :PE bag packing +outer carton





Product Details :


equivalent : Molex
Pitch: 2.54mm
No.of Rows : 1
No.of contact : 2-16
contact material : Brass
contact plating : tin plated
housing material : PA66 UL94V-2
Color : Yellow
PCB board mounting direction: top entry ,side entry





Specifications :
Voltage rating: 250V AC/DC
Current rating: 3A AC/DC
Withstanding voltage: 1,000V AC/minute
Insulation resistance: 1,000MΩ minimum
Temperature range: -25℃ to +85℃
Contact resistance: 40MΩ maximum
Applicable wire : AWG#22-30
